OPGW And ADSS Hardware
OPGW Tension Fitting
Material
Aluminum clad steel
Standard
IEC 61248
Suitable OPGW conductor
φ7.2-21.1mm
Tensile holding strength
70-120kN (95% of conductor RTS or higher)
Option
Link fittings, PG clamp, earth wire and cable lug
Details

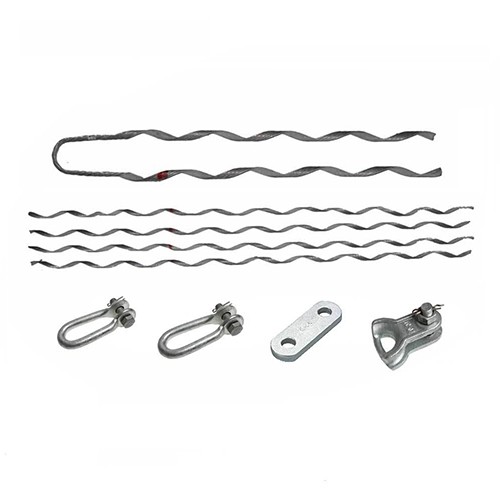

The OPGW tension fitting is assembled mainly by preformed deadend grip and glued reinforcing rod (inner rod). To make complete set for using, various link fittings such as shackle, strap and thimble clevis should be connected, and parallel groove clamp with earthing wire are options from customer request.
