OPGW And ADSS Hardware
ADSS Tension Fitting
Material
Aluminum clad steel
Standard
IEC 61248
Suitable ADSS conductor
φ9-15.6mm
Tensile holding strength
6-60kN
Option
Link fittings
Details

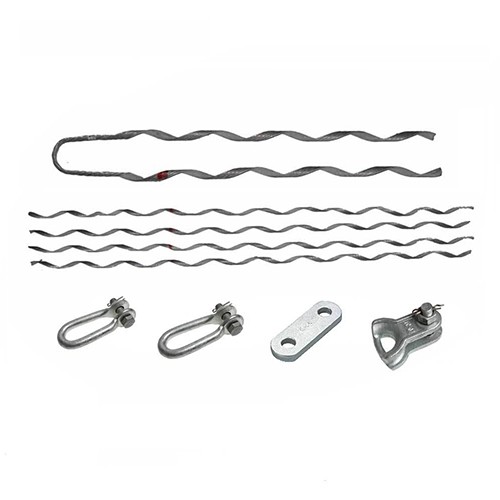

The ADSS tension fitting is assembled mainly by preformed deadend grip with/without reinforcing rod (inner rods). To make complete set for using, various link fittings such as shackle, strap and thimble clevis should be connected. For span distance less than 100m, it is also possible to use only deadend grip without reinforcing rods, the fitting breaking strength is limited by 15kN.

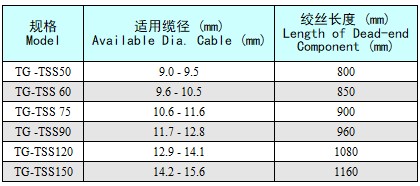

ADSS deadend grip without reinforcing rods

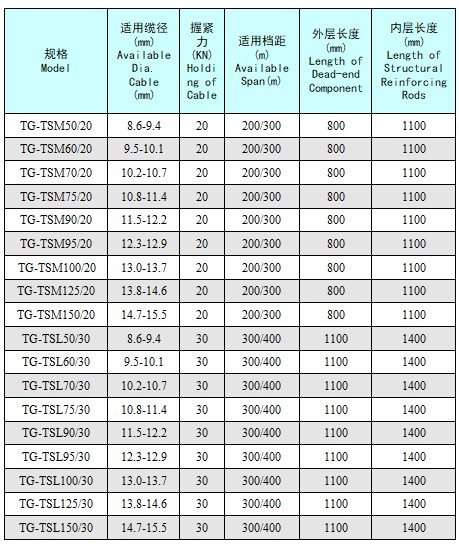

ADSS deadend grip with reinforcing rods
