Disconnector Switch
Disconnector Switch
Insulation material
Porcelain or Polymer
Connector material
Copper or Aluminum
Standard
IEC 62271-102
Type
Outdoor
Function
Switch without loading
Application
Power line and substation

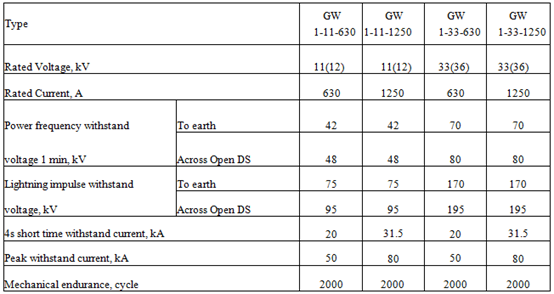

Rated voltage
10-36kv
Current rating
400-2000A
Details

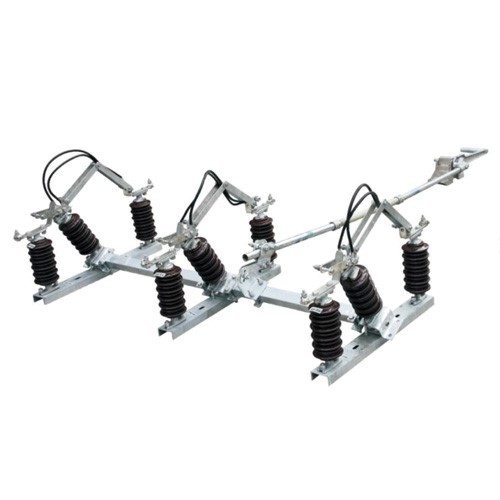

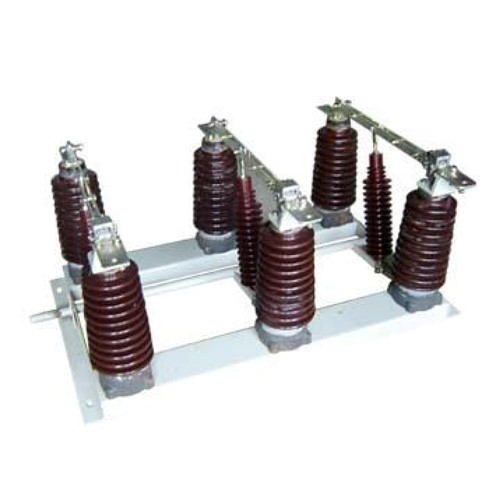

The disconnector is the high voltage switch equipment with compact structure which suitable for outdoor using 10-36kv power line operating without current load. With manpower operating rod, the disconnector will be controlled for opening or closing circuit. We can supply polymer or porcelain type insulation upon customer request.
