Surge Arrester
Surge Arrester Polymer Type
Housing material
Polymer
Standard
IEC 60099-4, ANSI C62.11
Type
Metal-oxide without gaps
Application
Power line and substation
Rated voltage
3-220kv
Discharge current
5kA and 10kA
Option
Steel mounting bracket, disconnector, earthing wire
Details
The metal oxide surge arrester are used for protecting electrical equipment from over voltage accident such as lightning at distribution network for power line and substation, and improve its operating reliability. Our products comply IEC and ANSI standard. There are various accessories e.g. steel bracket and earthing wires as available option. The station type surge arrester assembled with steel base plate and corona ring for 110kv and above as option.

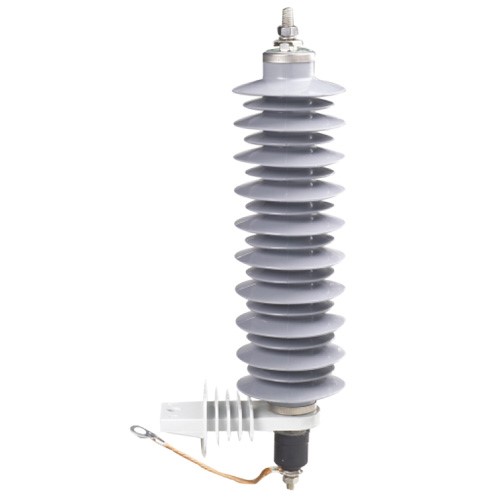

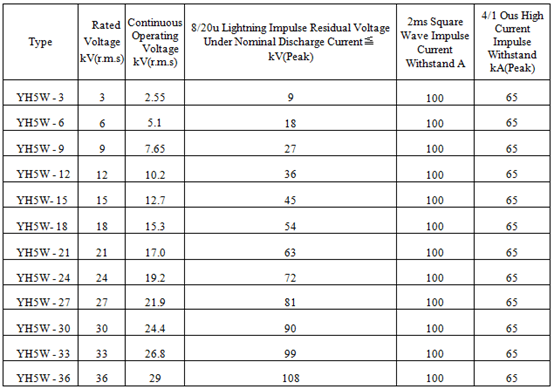

Surge Arrester - Line type, discharge current 5kA

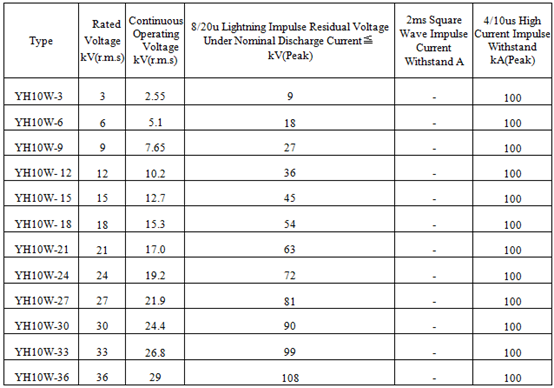

Surge Arrester - Line type, discharge current 10kA

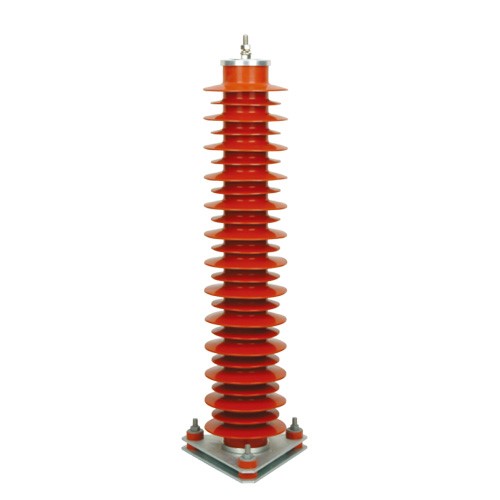

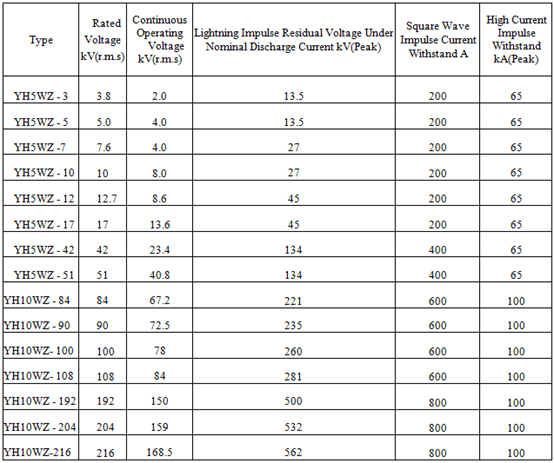

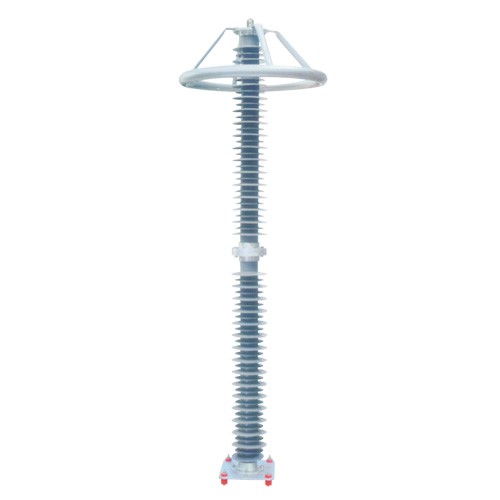

Surge Arrester - Substation type
