Polymer Insulator

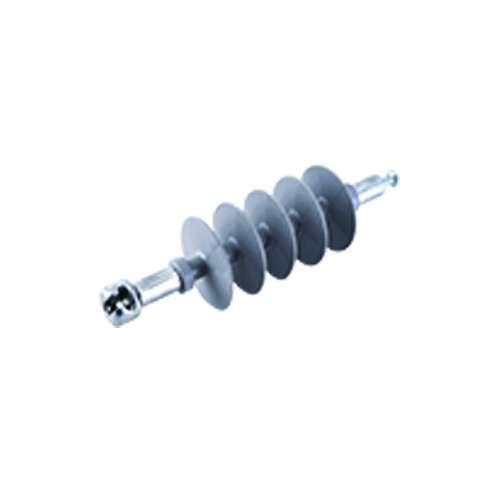

Polymer Suspension Insulator
Insulation Material
Polymer / Silicone rubber / Composite
Standard
IEC 61109, ANSI C29.12
Rated Voltage
11-330kV
Strength
70-300kN
End fittings
Socket, Ball, Clevis, Tongue, V-clevis, Oval
Color
Grey
Option
Corona Shield
Details
The suspension polymer insuator is made by fiberglass rod, silicone rubber and end fittings. Similar to suspension porcelain insulator, the polymer insulator can be used for suspesnion and tension situation.
The obvious advantage of polymer insulator is light weight and not easy broken compare to porcelain material.
