Fuse Cutout

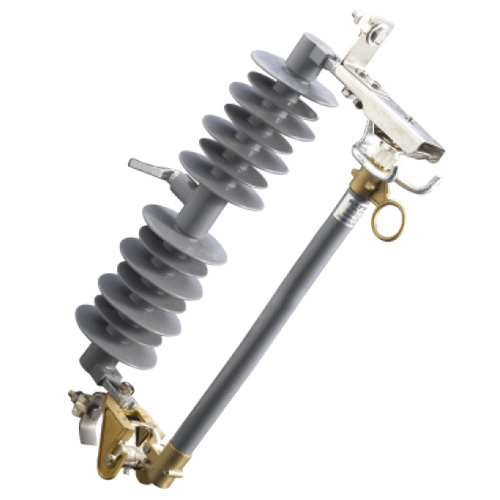

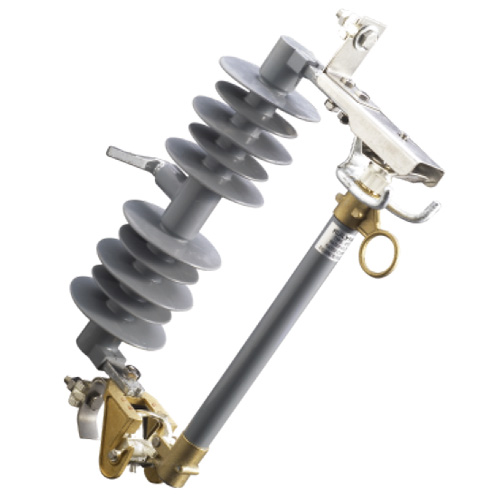

Fuse Cutout Polymer Type
Housing material
Polymer
Standard
IEC 60282-2, ANSI C37.42
Type
Expulsion
Rated voltage
10-36kv
Current rating
100A, 200A, 300A (copper blade)
Option
Fuselink, steel mounting bracket, arc shorten rod, arc chute interrupter
Details
The fuse cut out provide reliable protection from low level overload currents that just melt the fuselink, through intermediate and very high faults current up to max interrupt capacity for the AC line system and various apparatus on the line such as transformers and disconnectors. There are various accessories e.g. steel bracket and arc protection as available option.
