Tower And Pole
Bus Gantry
Raw material
Steel Q345 (ASTM A572 GR50/ST52), Q235 (ASTM A36/ST37)
Ultimate tensile of steel
490-675Mpa, 375-500Mpa
Min. yield strength of steel
345Mpa, 235Mpa
Galvanizing
Hot dip galvanizing per ISO 1461/ASTM A123
Application
10-500kv substation
Details

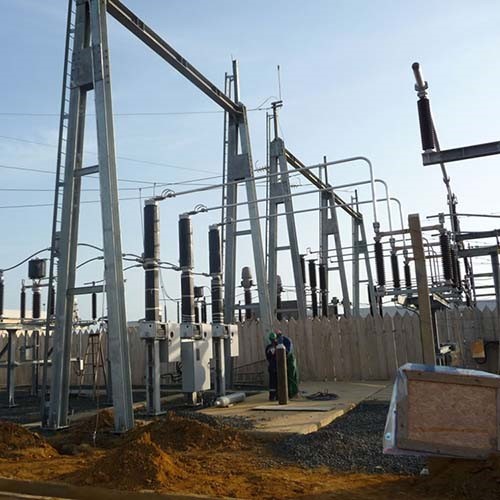

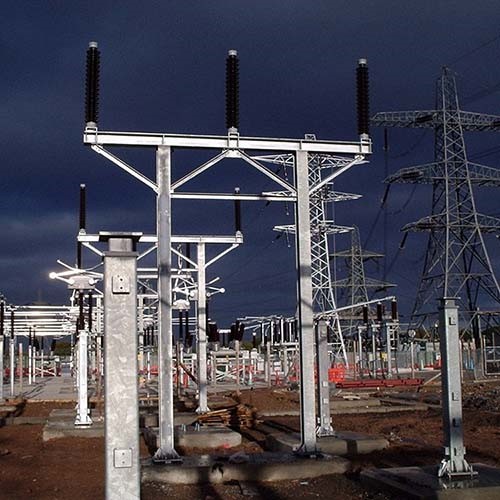

We can supply various steel structures for substation e.g. bus gantry and steel support for DS, LA, PT, CT according to customer request. All steel materials are hot dip galvanizing with average zinc thickness ≥85um according to international standard.
